Crop Thumbnails

Download the image, crop each detected face using bounding boxes, and upload thumbnails to S3.

Goal

When a photo upload triggers beetroot-ingest, the Lambda should:

Download the image from the raw bucket
Convert Rekognition bounding boxes (ratios) into pixel coordinates
Crop each detected face into a thumbnail
Upload thumbnails to s3://beetroot-thumbs/faces-thumbs/<photoId>/...
(Optional) store thumbnail keys back into the Photos item for easy debugging

Prerequisite

Make sure your Pillow layer is attached and working (from PIL import Image works).

Setup

Environment Variables

Add these environment variables in your Lambda:

THUMBS_BUCKET = beetroot-thumbs
THUMBS_PREFIX = faces-thumbs/

Increase Lambda Timeout

Go to Lambda → beetroot-ingest
Configuration → General configuration → Edit
Set Timeout: 1 minute
Save

Crop Code

What this update does

Compared to the previous phase (DetectFaces), the Lambda now:

adds an S3 client required to download and upload image bytes
uses Pillow to crop face thumbnails
converts boundingBox ratios → pixels safely (with clamping)
uploads thumbnails into a stable S3 path per photo

Part 1: New imports

We add two new imports for image byte handling and cropping:

BytesIO → treat bytes like a file object
PIL.Image → open, crop, and save images

from io import BytesIO
from PIL import Image

Why BytesIO?

S3 gives us raw bytes. Pillow expects a “file-like” object, so we wrap bytes in BytesIO.

Part 2: Configurations

2.1 S3 Client

We add an S3 client to download the original photo and upload thumbnails.

# --- AWS clients/resources ---
ddb = boto3.resource("dynamodb")
rek = boto3.client("rekognition")
s3 = boto3.client("s3")

2.2 Thumbnails Destination

We read where thumbnails should be stored:

THUMBS_BUCKET = os.environ["THUMBS_BUCKET"]
THUMBS_PREFIX = os.environ.get("THUMBS_PREFIX", "faces-thumbs/")

Why os.environ in case of THUMBS_BUCKET?

Use os.environ["THUMBS_BUCKET"] so the function fails fast if the variable is missing.

Part 3: Bounding box helpers

Rekognition returns bounding boxes as ratios (0..1) and sometimes edge cases can go slightly outside the range.

3.1 Clamp values

def clamp01(x: float) -> float:
    return max(0.0, min(1.0, x))

Edge cases

clamp01(-0.20) → 0.0
clamp01(1.30) → 1.0

Normal values

clamp01(0.15) → 0.15
clamp01(0.80) → 0.80

3.2 Convert ratios → pixels

This turns Left/Top/Width/Height into pixel coordinates that Pillow can crop.

def bbox_to_pixels(bbox: dict, img_w: int, img_h: int) -> tuple[int, int, int, int]:
    left = clamp01(float(bbox.get("Left", 0.0)))
    top = clamp01(float(bbox.get("Top", 0.0)))
    width = float(bbox.get("Width", 0.0))
    height = float(bbox.get("Height", 0.0))

    right = clamp01(left + width)
    bottom = clamp01(top + height)

    x1 = int(left * img_w)
    y1 = int(top * img_h)
    x2 = int(right * img_w)
    y2 = int(bottom * img_h)

    x2 = max(x2, x1 + 1)
    y2 = max(y2, y1 + 1)
    return x1, y1, x2, y2

x1 = int(left * img_w)
y1 = int(top * img_h)
x2 = int(right * img_w)
y2 = int(bottom * img_h)

img_w = 4000, img_h = 3000
Left = 0.25, Top = 0.10
Width = 0.20, Height = 0.25

x1 = 4000 * 0.25 = 1000
y1 = 3000 * 0.10 = 300
x2 = x1 + 4000 * 0.20 = 1800
y2 = y1 + 3000 * 0.25 = 1050

These are the pixel crop coordinates Pillow needs.

What's the clamp for?

Clamping prevents invalid crop coordinates when bounding boxes are near image edges.

Part 4: Download the image

After DetectFaces returns face_details, we fetch the same image from S3 and load it into Pillow to crop faces.

obj = s3.get_object(Bucket=bucket, Key=key)
img_bytes = obj["Body"].read()

im = Image.open(BytesIO(img_bytes)).convert("RGB")
img_w, img_h = im.size

4.1 Download the S3 object

obj = s3.get_object(Bucket=bucket, Key=key)

Fetches the object metadata + body stream from S3.

4.2 Read bytes from the streaming body

img_bytes = obj["Body"].read()

Extracts the Body (a streaming response) and reads it fully into raw bytes.

Why we need it?

Pillow can't crop a streaming object directly, it needs bytes (or a file-like wrapper).

4.3 Open the image with Pillow

im = Image.open(BytesIO(img_bytes)).convert("RGB")

Wraps img_bytes in BytesIO (so it looks like a file),
Opens it using Pillow,
Converts it to RGB.

4.4 Capture image dimensions

img_w, img_h = im.size

Reads the image width and height in pixels.

Part 5: Crop and upload thumbnails

For every detected face, we:

read its BoundingBox
convert it from ratios → pixels
crop the face region using Pillow
save the crop to memory as a JPEG
upload it to S3
store the uploaded key in thumb_keys

5.1 Loop over each detected face

thumb_keys = []
for idx, fd in enumerate(face_details, start=1):

thumb_keys to store each uploaded thumbnail path.
face_details is a list (one entry per face).
idx becomes 1, 2, 3... so we can name thumbnails like face_1.jpg, face_2.jpg, etc.

5.2 Convert the face bounding box to pixels

bbox = fd.get("BoundingBox", {})
x1, y1, x2, y2 = bbox_to_pixels(bbox, img_w, img_h)

Rekognition gives bounding boxes as ratios (0..1).
bbox_to_pixels converts them into real pixel coordinates based on the image size.
Output is a rectangle:
- (x1, y1) is top-left
- (x2, y2) is bottom-right

5.3 Crop the face from image

face_im = im.crop((x1, y1, x2, y2))

Pillow's crop takes a rectangle and returns a new image containing only that region.

This is the face thumbnail.

5.4 Save the thumbnail to memory as JPEG

out = BytesIO()
face_im.save(out, format="JPEG", quality=90)
out.seek(0)

BytesIO() creates an in-memory file.
We save the cropped face into it as a JPEG.
out.seek(0) rewinds the pointer to the start so S3 can read the bytes correctly.

Common bug

If you forget out.seek(0), uploads can become empty or corrupted because the pointer is at the end.

5.5 Build the thumbnail S3 path (key)

thumb_key = f"{THUMBS_PREFIX}{photo_id}/face_{idx}.jpg"

This creates keys like:

faces-thumbs/a1f09c2b7e3d4a91b6c2/face_1.jpg
faces-thumbs/a1f09c2b7e3d4a91b6c2/face_2.jpg
Why this S3 path?
Using <photoId>/face_1.jpg keeps thumbnails grouped per photo, which makes:
- browsing in S3 easy
- debugging easy (everything for a photo is in one folder)
- cleanup easy (delete one folder to remove all thumbs for a photo)

Part 6: Upload to thumbs bucket

s3.put_object(
    Bucket=THUMBS_BUCKET,
    Key=thumb_key,
    Body=out.getvalue(),
    ContentType="image/jpeg",
)

uploads the in-memory bytes to S3
sets ContentType so the file previews correctly in the console/browser

Part 7: Store the key we uploaded

thumb_keys.append(thumb_key)

Now thumb_keys will contain every thumbnail path for this photo.

Full Crop Code

thumb_keys = []

for idx, fd in enumerate(face_details, start=1):
    bbox = fd.get("BoundingBox", {})
    x1, y1, x2, y2 = bbox_to_pixels(bbox, img_w, img_h)

    face_im = im.crop((x1, y1, x2, y2))

    out = BytesIO()
    face_im.save(out, format="JPEG", quality=90)
    out.seek(0)

    thumb_key = f"{THUMBS_PREFIX}{photo_id}/face_{idx}.jpg"
    s3.put_object(
        Bucket=THUMBS_BUCKET,
        Key=thumb_key,
        Body=out.getvalue(),
        ContentType="image/jpeg",
    )

    thumb_keys.append(thumb_key)

print(f"Thumbnails: uploaded {len(thumb_keys)} to s3://{THUMBS_BUCKET}/{THUMBS_PREFIX}{photo_id}/")

Updated Lambda Code

Paste and deploy:

beetroot-ingest/lambda_function.py

import json
import os
import hashlib
from datetime import datetime, timezone
from urllib.parse import unquote_plus
from io import BytesIO

import boto3
from botocore.exceptions import ClientError
from PIL import Image

ddb = boto3.resource("dynamodb")
s3 = boto3.client("s3")
rek = boto3.client("rekognition")

PHOTOS_TABLE_NAME = os.environ.get("PHOTOS_TABLE", "Photos")
RAW_PREFIX = os.environ.get("RAW_PREFIX", "photos-raw/")

THUMBS_BUCKET = os.environ["THUMBS_BUCKET"]
THUMBS_PREFIX = os.environ.get("THUMBS_PREFIX", "faces-thumbs/")

photos_table = ddb.Table(PHOTOS_TABLE_NAME)

def make_photo_id(bucket: str, key: str) -> str:
    raw = f"{bucket}/{key}".encode("utf-8")
    return hashlib.sha256(raw).hexdigest()[:20]

def clamp01(x: float) -> float:
    return max(0.0, min(1.0, x))

def bbox_to_pixels(bbox: dict, img_w: int, img_h: int) -> tuple[int, int, int, int]:
    left = clamp01(float(bbox.get("Left", 0.0)))
    top = clamp01(float(bbox.get("Top", 0.0)))
    width = float(bbox.get("Width", 0.0))
    height = float(bbox.get("Height", 0.0))

    right = clamp01(left + width)
    bottom = clamp01(top + height)

    x1 = int(left * img_w)
    y1 = int(top * img_h)
    x2 = int(right * img_w)
    y2 = int(bottom * img_h)

    x2 = max(x2, x1 + 1)
    y2 = max(y2, y1 + 1)
    return x1, y1, x2, y2

def lambda_handler(event, context):
    records = event.get("Records", [])
    if not records:
        print("No Records in event; exiting.")
        return {"statusCode": 200, "body": "no records"}

    for record in records:
        s3_info = record.get("s3", {})
        bucket = s3_info.get("bucket", {}).get("name")
        key = s3_info.get("object", {}).get("key")

        if not bucket or not key:
            print("Skipping record: missing bucket/key")
            continue

        key = unquote_plus(key)

        if not key.startswith(RAW_PREFIX):
            print(f"Skipping key outside RAW_PREFIX ({RAW_PREFIX}): {key}")
            continue

        photo_id = make_photo_id(bucket, key)
        uploaded_at = datetime.now(timezone.utc).isoformat()

        item = {
            "photoId": photo_id,
            "s3Bucket": bucket,
            "s3Key": key,
            "uploadedAt": uploaded_at,
        }

        try:
            photos_table.put_item(
                Item=item,
                ConditionExpression="attribute_not_exists(photoId)",
            )
            print(f"Photos: inserted photoId={photo_id} key={key}")
        except ClientError as e:
            code = e.response.get("Error", {}).get("Code", "Unknown")
            if code == "ConditionalCheckFailedException":
                print(f"Photos: already exists; skipping photoId={photo_id} key={key}")
                continue
            print("DynamoDB put_item failed:", str(e))
            raise

        resp = rek.detect_faces(
            Image={"S3Object": {"Bucket": bucket, "Name": key}},
            Attributes=["DEFAULT"],
        )

        face_details = resp.get("FaceDetails", [])
        face_count = len(face_details)
        print(f"DetectFaces: photoId={photo_id} faces={face_count}")

        photos_table.update_item(
            Key={"photoId": photo_id},
            UpdateExpression="SET faceCount = :c",
            ExpressionAttributeValues={":c": face_count},
        )

        if face_count == 0:
            print(f"No faces; done for photoId={photo_id}")
            continue

        obj = s3.get_object(Bucket=bucket, Key=key)
        img_bytes = obj["Body"].read()

        im = Image.open(BytesIO(img_bytes)).convert("RGB")
        img_w, img_h = im.size

        thumb_keys = []

        for idx, fd in enumerate(face_details, start=1):
            bbox = fd.get("BoundingBox", {})
            x1, y1, x2, y2 = bbox_to_pixels(bbox, img_w, img_h)

            face_im = im.crop((x1, y1, x2, y2))

            out = BytesIO()
            face_im.save(out, format="JPEG", quality=90)
            out.seek(0)

            thumb_key = f"{THUMBS_PREFIX}{photo_id}/face_{idx}.jpg"
            s3.put_object(
                Bucket=THUMBS_BUCKET,
                Key=thumb_key,
                Body=out.getvalue(),
                ContentType="image/jpeg",
            )

            thumb_keys.append(thumb_key)

        print(f"Thumbnails: uploaded {len(thumb_keys)} to s3://{THUMBS_BUCKET}/{THUMBS_PREFIX}{photo_id}/")

    return {"statusCode": 200, "body": "ingest lambda with crop ok"}

Test

Upload a group photo

aws s3 cp ./v2-test-photos/group4.jpg s3://beetroot-raw/photos-raw/ --region us-east-1

In CloudWatch logs, confirm:
- `DetectFaces: ... faces==N;`
- `Thumbnails: uploaded N ...`

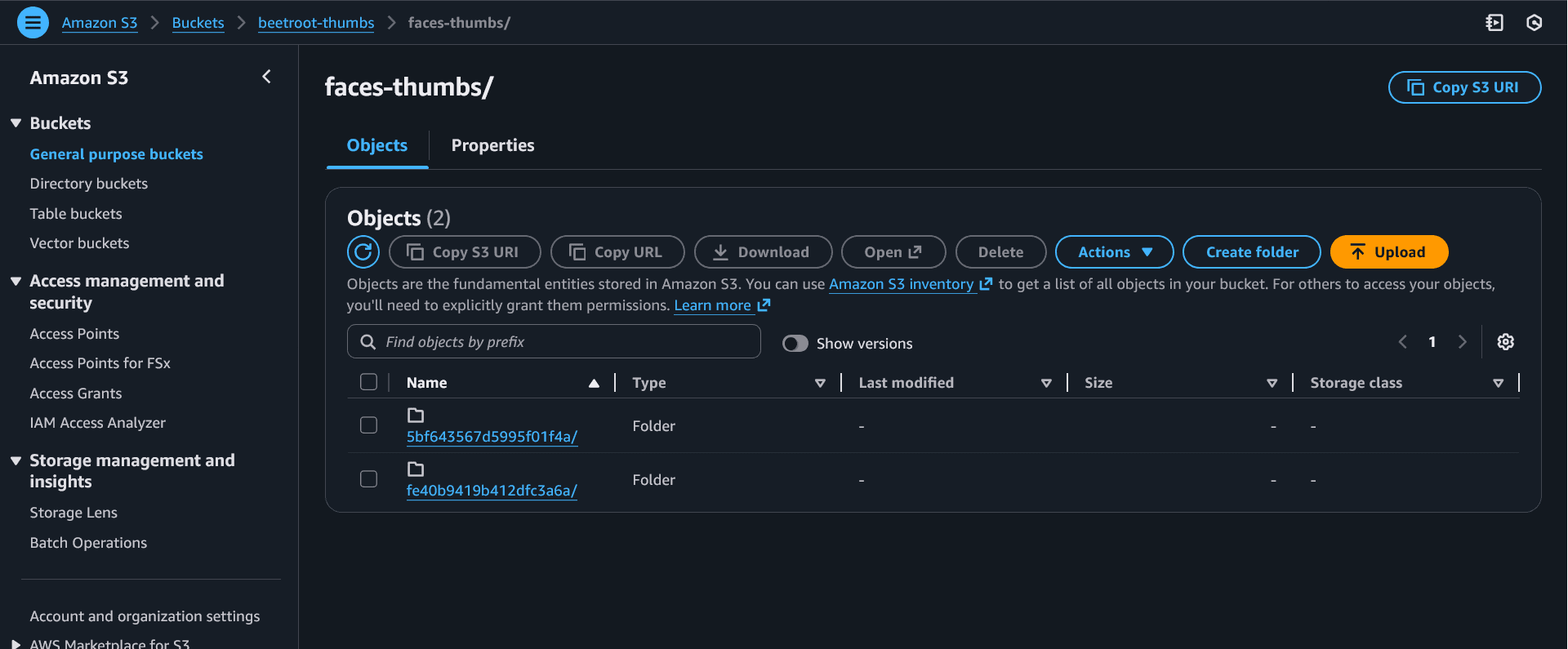

Verify thumbnails in S3

Go to the thumbs bucket and confirm files exist under:

- `faces-thumbs/<photoId>/face_1.jpg`
- `faces-thumbs/<photoId>/face_2.jpg`
- ...

beetroot-thumbs S3 bucket prefix faces-thumbs

Common mistakes

If logs stop after DetectFaces... and you see a report like: Duration: 3000.00 ms, your Lambda is timing out before cropping/uploading.

Fix: Increase Configuration → General configuration:

Timeout: 1 minute

If you see No module named 'PIL', your Pillow layer isn't attached or the layer zip structure is wrong.

If you see AccessDenied for S3, your role is missing:

raw bucket read: s3:GetObject
thumbs bucket write: s3:PutObject

If logs show faces=0, try a photo with larger, front-facing faces and better lighting.

If thumbnails upload but look broken/empty, ensure:

you call out.seek(0)
you upload out.getvalue() (bytes)

Student questions

Some images may be PNG or have different modes. Converting to RGB ensures we can consistently save JPEG thumbnails.

Bounding boxes near edges can be slightly outside the image. Clamping prevents invalid crop coordinates.

Crop Thumbnails

On this page
